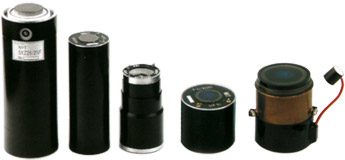

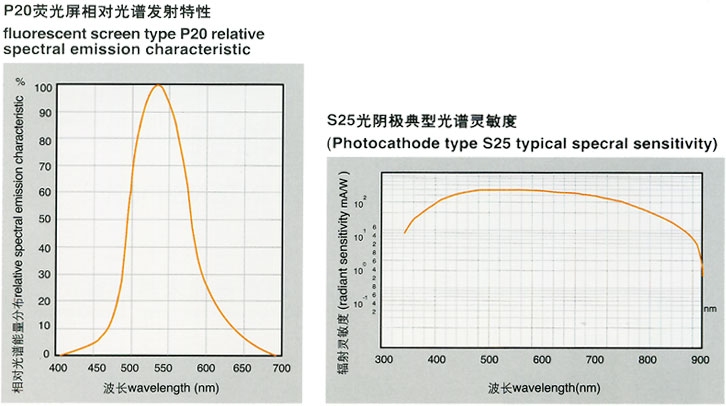

The first generation image intensifier module is electro-statically focused diode, incorporating S25 photocathde and P20 phosphor. Its magnification may be 1,greater than 1 or less than 1. Other types of photocathode and phosphor are available as requested, also available for output brightness uniformed and distortion corrected, flash protected and corona or static discharge protected.

First generation image intensifier assembly includes includes a module or staged modules with an integral high voltage power supply. It enjoys many special features, such as gain and maximum output brightness adjustable, automatic brightness control, flash protection, reverse polarity protection, lower input voltage and smaller input current. It is applicable in different environmental conditions conformed to environmental test requirement of military products, such as high temperature, lower temperature, vibration and shock, etc.


Type 1XZ18/7F
(xx1227)
1XZ18/7F-2 1XZ18/7F-6
(xx1490)
1XZ40/13F
(xx1317)
2XZ18/7F
(xx1277)
2XZ18/18F
(xx1290)
3XZ18/18F
(xx1340)
3XZ25/25F
(xx1149)
3XZ25/25F-1
(xx1140)
useful dia.
Input mm 18 18 18 40 18 18 18 25 25
output mm 7 7 7 13 7 18 18 25 25
Window
Inout mm FO FO FO FO FO FO FO FO FO
output mm G G G G G FO FO FO FO
Gathode S25 S25 S25 S25 S25 S25 S25 S25 S25
Phosphor Screen P20 P20 P20 P20 P20 P20 P20 P20 P20
Photocathode sensitivity
2856K µA/lm 300 300 300 250 270 270 270 275 275
800nm mA/W 25 25 25 15 20 20 20 20 20
850nm mA/W 15 15 15 10 15 15 15 15 15
Resoltion (at output)
Center lp/mm 100 100 100 95 70 45 34 30 30
Edge lp/mm 90 90 90 75 60 40 28 28 28
Gain cd/m2 /lx 220 450 300 450 5700 1500 19000 25000 25000
EBI µlx 0.4 0.4 0.4 0.4 0.2 0.2 0.2 0.2 0.2
Magnification 0.375 0.375 0.375 0.29 0.36 0.90 0.82 0.90 0.90
Input curent mA   35 35   45 45 45 30 30
Input voltage V 1200 2.7 2.7 16000 2.7 2.7 2.7 6.75 6.75
Mass g 100 200 180 285 300 320 455 900 900
Dimensions mm φ37×48 φ58×52 φ53×50 φ85×82 φ57×100 φ53×100 φ53×148 φ70×195 φ70×195
Remark   /   /   / / / /
Remark
FO
: Fiber optic window, G: Glass window, EBI: Equivalent background illumination, Useful dia: Useful diameter
