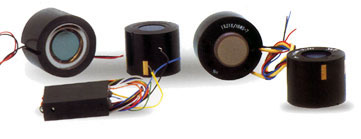

Gated image Intensifier is assembled with a high performance tube and gain-adjustable, gated power supply, using Fiber Optic Faceplate or Anti-veiling Glass (AVG) as the input window and Fiber Optic Faceplate as output window, with wafer photoelectron system, infrared response extended S25+ photocathode, 6µm electron multiplier MCP, and short & medium decay phosphor P31. Equipped with gated power supply (composed with an oscillator module and a high muliplier), the intensifier enjoys not only the normal advantages of Gen. II tube like gain-adjustable, auto-brightness control, reverse polarity protection, low input voltage and current consumption, but also enjoys the benefit of protecting the tube from bright source, functioning on gating the cathode voltage to limit incident photo via fast response gate curren to meet the various level of luminance.

It is applicable in different environmental conditions conformed to environmental test requirement of mlitary products, such as high temperature, low temperature, vibration and shock, etc.

Remark: All the tubes with MCP can be gated image intensifiers equipped with gated power supply

Type 1XZ18/18WS-7
useful dia. 18
Window
Inout mm AVG/FO
output mm FO
Gathode S25

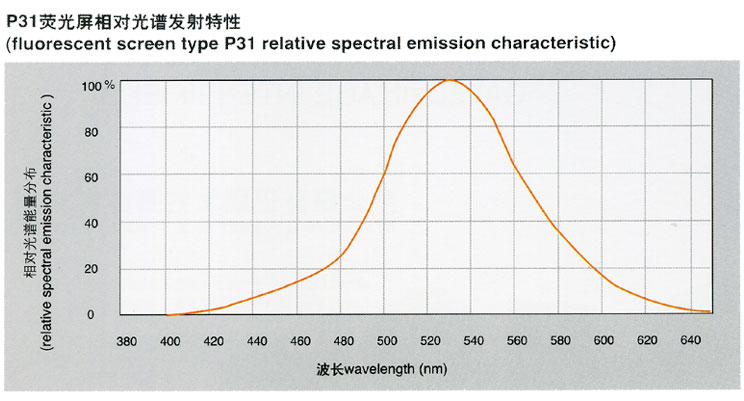

Phosphor Screen P31

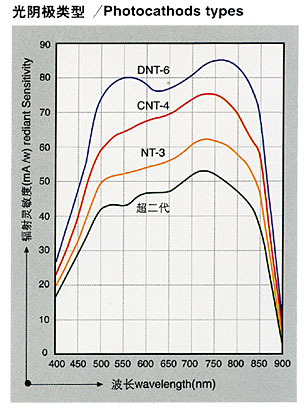

Photocathode sensitivity
2856K µA/lm 500
800nm mA/W 45
800nm mA/W 30
Gain cd/m2 /lx 8000

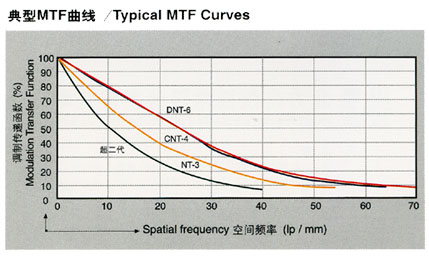

Resoltion
Center lp/mm 50
Edge lp/mm 50
Unifornity 1.4:1
EBI µlx 0.2
S/N (108µlx) 20
Input curent mA 30
Mass g 98
Dimensions mm Φ43×24.5
Input voltage V 8
gate on time ns min40
gate rise/fall time as 40
gate propagation delay as 40
Repetitions rate Hz 1k
gate trigger voltage V 5
external gain control V 5
Power supply size mm 40x25x13
