Art No. : microchannel plate require sample
empty

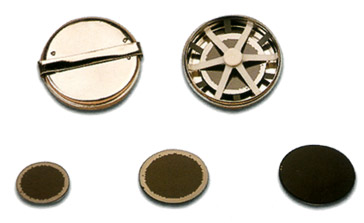

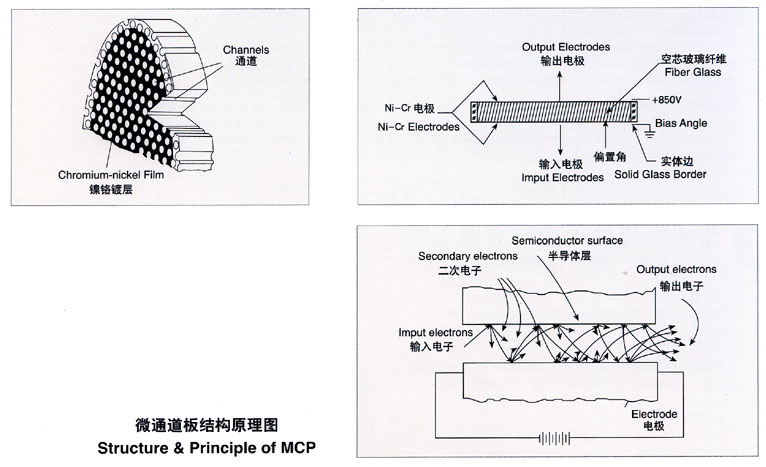

Micro channelplate (MCP) is a state-of-art electron multiplier which function is to transfer and intensify electron image. With its small size, light weight, nice resolution, high gain, low noise, and low operation voltage,quick response, wide dynamic range, MCP is widely used in photo mulltiplier, image intensifier, X-ray image intensifier, high speed oscilloscopes, photon account and directly detect soft X-rays, UV photons, electrons, ions, charged particles and subatomic particles, etc.

Features
pore diameter : 5~50µm
open area ratio : ≥60%
electrode material : Ni-Cr
penetration depth of electrode
Input penetration: ≤0.8d (d: channel diameter)
output penetration: 2~3d
bake out temperature : ≤400oc
High output current, wide dynamic range,high gain,low noise, long life time
With or without solid glass border

Main Specifications of MCP serie:
Type Useful Diameter (mm) Channel Diameter (µm) Channel Pitch (µm) Resistance (MΩ) Sheet Resistance (Ω) Gain at 800V
M25/8 Φ18.8 8 10 70~250
M25/6 Φ18.8 6 8 70~250
M33/10 Φ26 10 12.5 50~300
M33/8 Φ26 8 10 50~300
M33/6 Φ26 6 8 50~300
M36/12 Φ31 12 14 80~300
M50 Φ45 25 27 50~300
M56 Φ50 25 27 50~300
M81 Φ76 27 30 30~200
M100 Φ95 27 30 30~200
M106 Φ100 27 30 30~200
Remark
1,test voltage : 1000V
2,Specification and outline drawings are available upon request.
