| Input Window: |
Quzrtz Glass |
| Output Window: |
|
| Phosphor: |
|
| Input voltage: |
|
| Input curent: |
|
| Electrical Interface: |
|
 |
| Type |
2XZ18/7WS |
2XZ18/18WS |
| useful dia. |
| Input mm |
20 |
20 |
| output mm |
30 |
30 |
| Window |
| Inout mm |
FO |
FO |
| output mm |
FO |
FO |
| Gathode |
S25 |
S25 |

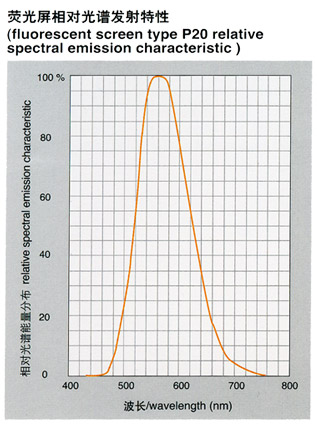

| Phosphor Screen |
P20 |
P20 |
| Photocathode sensitivity |
| 2856K µA/lm |
300 |
350 |
| 800nm mA/W |
25 |
30 |
| 850nm mA/W |
20 |
25 |
| Resoltion |
| Center lp/mm |
45 |
50 |
| Edge lp/mm |
40 |
45 |
| Gain cd/m2 /lx |
8000 |
10000 |
| EBI µlx |
0.2 |
0.2 |
| S/N (108µlx) |
3.2 |
3.5 |
| magnification |
1.5 |
1.5 |
| Input curent mA |
30 |
30 |
| Input voltage V |
2.7 |
2.7 |
| Mass g |
350 |
350 |
| Dimensions mm |
φ62×80 |
φ62×80 |
|
|
