home > night vision optics > night vision rifle scopes > IR Laser Aiming Sight
Art No. : IR Laser Aiming Sight require sample
empty

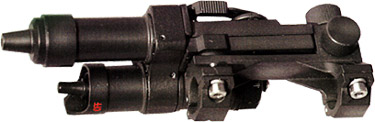

IR Laser Aiming Sight is a portable active night target-sighting apparatus, which can emit a truss of IR laser through IR laser tube, after light-gathering by optical collector system, filtering through optical filter, forming a truss of observable, fine-diameter IR laser beam through helmeted night sightglass, the IR laser beam will forma bright light-spot on target so as to achieve the purpose of observation and aiming target fitting with helmeted night sightglass. The apparatus can be installed on the guns like 79 type light tommy gun and operated with helmeted night sightglass, which can make the accurate aiming at the target within the distance of 50m or so at night.

Performance Index:
Max observation distance 100-120m (envionment illuminance : 102Lux)
Magnification 2x
Field of view >18o
Objective focal length 50mm
Objective aperture 40mm
Focusing range 0.5m~oo
Diopter regulating range -4 ~ +4D
Supply voltage 3.0V
Battery type two AA batteries
Overall dimension 180 x 80 x60mm3
weight 0.5kg
IR lamp concealed inside (operating range 15~25m)
