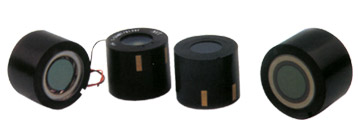

Ultraviplet (UV) Image Intensifier is a double wafer focusing tube using quartz glass input window which allows ultraviolet light passing through. The output window can be fibre-twister or straight fibre-optics. With our unique technology, UV tube can transform the weak, hurtless ultraviolet images to visible images. It is widely used in UV imaging systems and makes it quite an easier way for cultural relic authentication and print searching, etc. UV imaging systems also play an import role in scientific research activities. Additionally, it can be connected to CCD for digital files and disposal.

The key components in this tube are S20 photocathode, MCP, Aluminum-evaporated phosophor and integrated power supply. The tube is applicable with automaticbrightness control(ABC), bright source protection (BSP), reverse polarity protection, with advantages of no distortion, no halo, small size and weight Voltage rating is 2.65Vdc, ranging from 2.0Vdc to 3.4Vdc.

Features
Input Window: Quzrtz Glass
Output Window: Fibre-Twister (fibers optional)
Phosphor: P20 (other phospher optional)
Input voltage: 2.0Vdc-3.4Vdc
Input curent: <=20mA
Electrical Interface: Flying lead (connector or other style optional)
Specificaions
Type 1XZ18/18W-4
(XX1419)
1XZ18/18W-5
(XX1419)
useful dia.
Input mm 18 18
output mm 18 18
Window
Inout mm Quartz glass Quartz glass
output mm Fiber twister Fiber twister

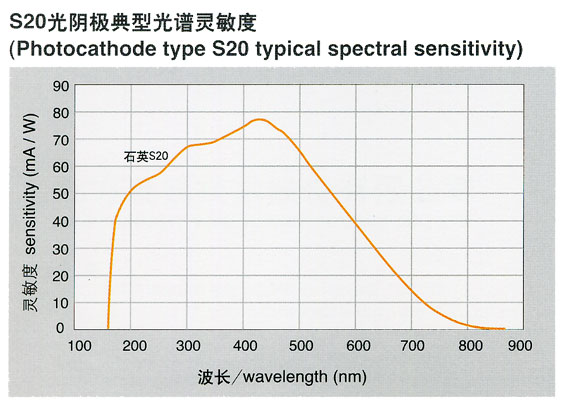

Gathode S20 S20

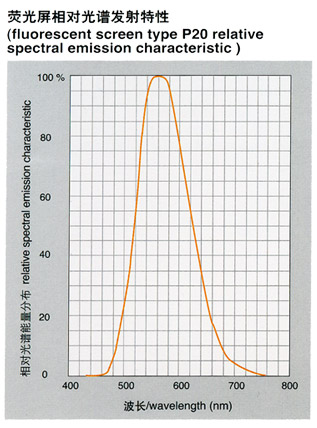

Phosphor Screen P20 P20
Photocathode sensitivity
254nm mA/W 25 25
365nm mA/W 30 30
Resoltion
Center lp/mm 40 40
Edge lp/mm 40 40
Uniformity 365nm 4:1 4:1
EBI µlx 0.25 0.25
magnification 1 1
Input curent mA 20 20
Input voltage V 2.65 2.65
Mass g 120 90
Dimensions mm Φ43×30 Φ36.8×30
