Art No. : high voltage power supply for image intensifier require sample
empty

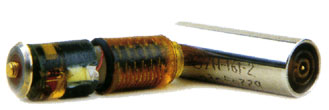

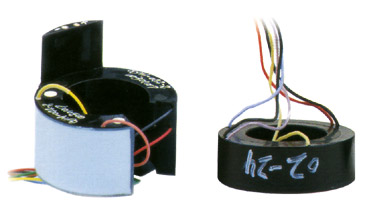

High voltage power supply for image intensifier is an electron converter whichis capabite to transform tow voltage of direct current into one or a series of high voltage of direct current (DC/DC Converter). Basically it consists of two components - an oscillator module and high multiplier module, and gating unt (when required).

Power supply for Gen. I tubes :
Type   Input voltage Input current Output voltage Dimension R1xR2xH Mass g main application
Oscillators for 1st Gen. Image Intensifiers
GYZ-231-2 XX1340
XX1277
2.65Vdc 40mAdc 2350Vac 17.5x25.4x24 ≤25 For 18mm single
GYZ-251-2   2.65Vdc 35mAdc 2500Vac 17.5x25.4x24 25 For 18mm single
GYZ-251-2 XX1149 6.75Vdc 30mAdc 2700Vac 23.2x32.7x26 35 For 25 tube
Multipliers for 1st Gen. Image Intensifiers
BYQ12KV-2   2500Vac 0.08mAac 12000Vdc 18.7x23.5x43 20 12KV Multiplier
BYQ15KV   2350Vac 0.085mAac 15000Vdc 18.7x25.4x24 20 15KV Multiplier
BYQ24KV   2350Vac 0.12mAac V1=12000Vdc
V2=24000Vdc
18.7x23.5x76 40 24KV Multiplier
BYQ36KV   2350Vac 0.17mAac V1=12000Vdc
V2=24000Vdc
V2=36000Vdc
18.7x23.5x120 60 36KV Multiplier
BYQ45KV   2700Vac 0.20mAac V1=15000Vdc
V2=30000Vdc
V2=45000Vdc
27.2x38x132 75 45KV Multiplier
Separate PS for 1st Gen. Image Intensifiers
GYH-121-2   3Vdc 30mAac 12000Vdc Φ15×43 25 12KV Separate PS
GYH-161-2   3Vdc 30mAac 16000Vdc Φ15×43 25 16KV Separate PS

Power supply for Gen. II tubes :
Type   Input voltage Input current Output voltage Dimension R1xR2xH Mass g main application
GYH-053-1 PS-12 2.65 18 Vs=5700
VMCP=825(ad)
Vc=200
11.5x21x23.5 ≤35 For Gen.II wafer tube (Φ43)
GYH-053-4 PS-52 2.65 18 Vs=5700
VMCP=825(ad)
Vc=200
10x17x11 20 For Gen.II wafer tube (Φ37)
GYH-065-1 PS-42 2.65 32 Vs=6000
VMCP=825(ad)
Vc=3000
VR=2700
19.3x28.5x25.3 65 For 25mm Gen.II inverter tube
GYH-044-2   2.65 32 Vs=4250
VMCP=825(ad)
VA=2800
VC=740
17.5x28.8x67.5 80 For 20/30 Gen.II inverter tube
GYH-124-2   2.65 32 Vs=5700
VMCP=825(ad)
VS2=11000
VC=200
16.8x25.4x50 50 For 18/18 hybrid tube
GYH-124-1   2.65 32 Vs=5700
VMCP=825(ad)
VS2=11000
VC=200
17.5x28.5x67.5 80 For 18/27 hybrid tube
GYH-053-3   2.65 18 Vs=5700
VMCP=1600(Max.)
Vc=200
17x31x34 60 For double MCPs tube
GYH-053-5   12 32 Vs=5700
VMCP=825(ad)
Vc=200
t start=40ns
t EGAC=5
LxWxH

40x25x13
35 For 18mm Gated tube

Features
  • Small size, lightweifht, shape fits varieties of requirement
  • Automatic brightness control (ABC)
  • Bright
  • Maxinum output brightness and gain adjustable
  • External gain adjustment
  • Auto-gating (when required)
  • conform to environmental requirementof military products
