Art No. : hybrid image intensifiers require sample
hybrid image intensifiers empty

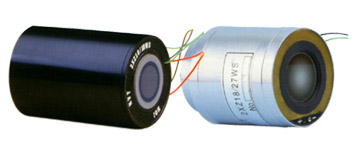

Hybrid image intensifiers is a wafer tube coupled with the generation tube in order to reduce noises and increase gain, and enjoys the benefits of high sensitivity, high gain, high S/N ratio and low noise.

This series of hybrid image intensifiers have incorated ith high voltage power supply, applicable with gain and maximum output brightness adjustable, automatic brightness control (ABC), bright source protection (BSP), reverse polarity protection, low input voltage and current in different environmental conditions confirmed to envromental test requirements of military products, espeically enlarges the field of view in very dark and weak contrast. The electrical interface could be flying lead or connector as required, also auti veiling glass availiable. They are widely usedin commanding and fire systems in various tanks and panzers, also in the field of researching at low light level and astronmy observation.

Special design and requirements from customer could be satisfied.

Type 2XZ18/7WS 2XZ18/18WS 2XZ18/18WS-3 2XZ18/27WS 2XZ18/27WS-1
useful dia.
Input mm 18 18 18 18 18
output mm 7 18 18 27 27
Window
Inout mm AVG AVG FO FO AVG
output mm G FO FO FO FO
Gathode S25 S25 S25 S25 S25

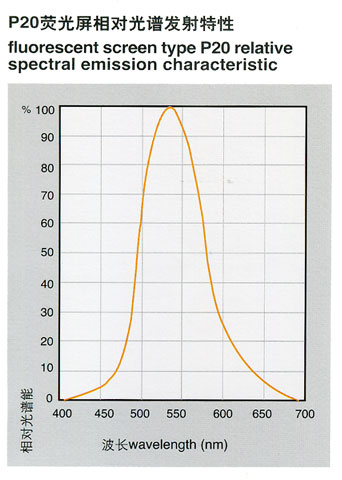

Phosphor Screen P20 P20 P20 P20 P20

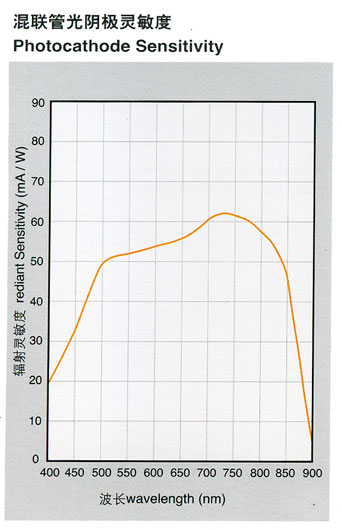

Photocathode sensitivity
2856K µA/lm 550 550 550 550 550
800nm mA/W 50 50 50 50 50
850nm mA/W 40 40 40 40 40

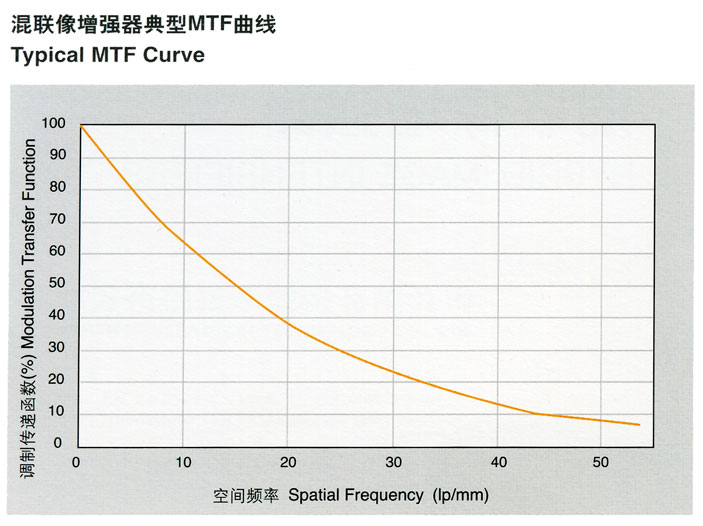

Resoltion
Center lp/mm 36 40 40 40 45
Edge lp/mm 32 38 38 40 40
Gain cd/m2 /lx 100000 75000 75000 50000 50000
EBI µlx 0.2 0.2 0.2 0.2 0.2
S/N (108µlx) 20 20 20 20 20
magnification 0.36 0.95 0.95 1.5 1.5
Input curent mA 32 32 32 32 32
Input voltage V 2.7 2.7 2.7 2.7 2.7
Mass g 24. 300 300 350 350
Dimensions mm Φ53×66 Φ53×76 Φ53×78.5 Φ62×80 Φ62×80
Remark
AVG : Anti-veiling glare, FO : Fiber optic faceplate
