Chinese 152mm/6"inch Newtonian Bird/Jones reflector telescope

152mm short tube reflector telescope

Home > Telescope > Reflectors > Bird/Jones Newtonians > BJ1050x152EQ5/AT5

Item No. : BJ1050x152EQ5/AT5

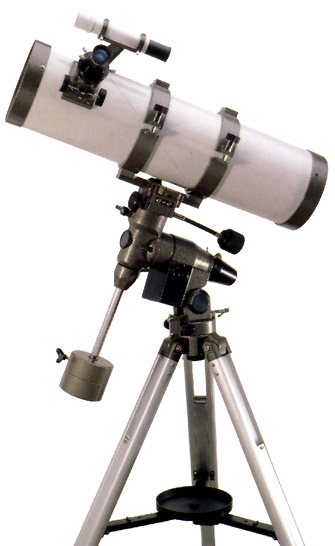

152mm/6"inch short tube reflector telescope

Description : 152mm (6-inch) Short-Tube Reflector

Primary mirror : Bird-Jones mirror (Spherical Primary)

Mirror Diameter : 152mm (6-inch)

Focal length (f) : 1050mm (41-inch), f/7

Equatorial mount : EQ5 German Equatorial

Finderscope : 6x30mm

Tripod : AT5, Aluminum two section adjustable with accessory tray

Standard Accessories 31.75mm (1.25-inch) : Plossl Eyepiece: PL6.5mm, PL20mm

Resolving power (Angular Resolution) : 0.753 arcsec

Maximum Useful Magnification : 299X

Limiting Magnitude : 14.8

Packing list/Set

152mm (6-inch) Short-Tube Reflector	1 pc
152mm (6-inch) Bird-Jones Spherical Primary Mirror	1 pc
EQ5 German Equatorial Mount	1 pc
6x30 Finderscope	1 pc
AT5 Aluminum, two section adjustable Tripod	1 pc
31.7mm (1.25-inch) Plossl Eyepiece PL6.5mm, PL20mm	1 ea
50.8mm (2-inch) Focuser	1 pc
Eyepiece Cleaning Cloth	1 pc
Instruction Manual	1 pc

Characteristic

The Bird-Jones mirror design offers two advantages: less aberrations than a normal spherical primary, and a more compact and portable telescope.
The EQ5 German Equatorial mount and AT5 tripod offer maximum stability and smooth motion.
The EQ5 mount can be fitted with either the DK1 (single axis) or DK3 (dual axis) Motor Drives.
